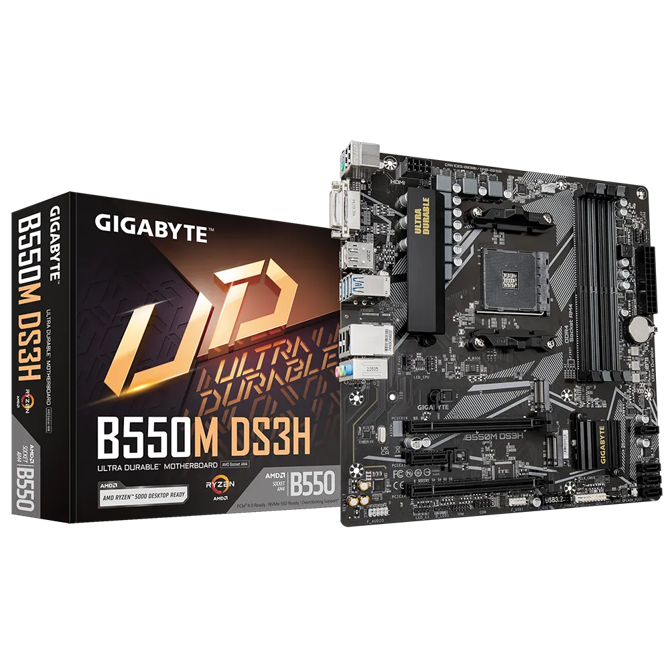

GIGABYTE B550M DS3H, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX

PODNOŽJE: AMD AM4
ZA PROCESORJE: AMD RYZEN
FORMAT: mATX format 24.4 cm x 24.4 cm
VEZNI ČIP: AMD B550
POMNILNIK:
4 x DDR4 DIMM ECC/non-ECC do 4733 MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora
GRAFIKA: DA - preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0 x4
1 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek LAN chip (10/100/1000Mbit)
ZVOČNA KARTICA: Realtek ALC887 codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

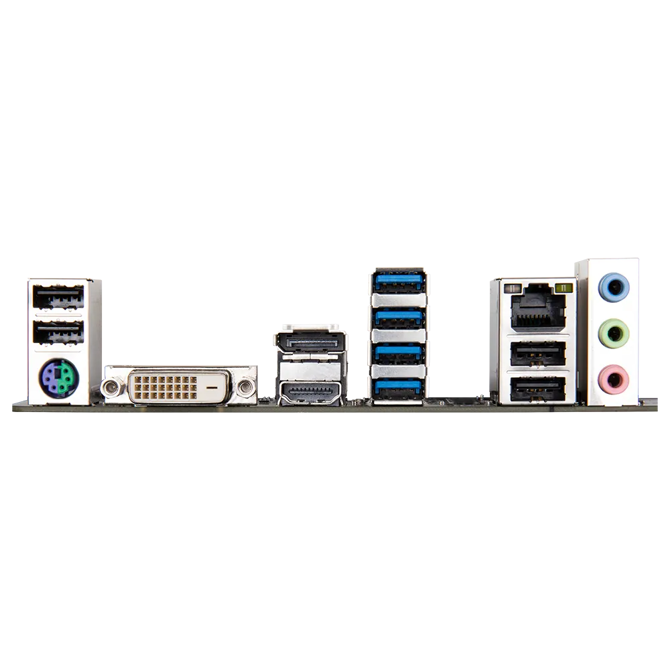

ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
