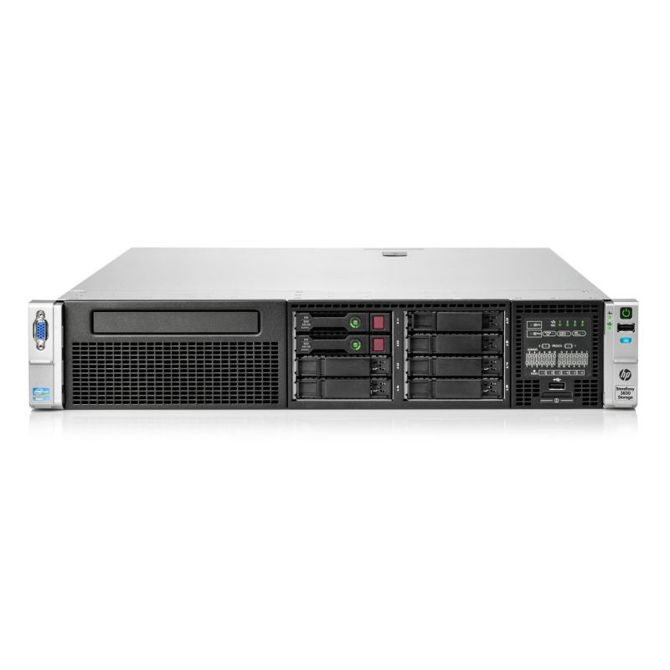

NAS strežnik HP StoreEasy 3830 Gateway Storage B7E00A

With HP StoreEasy 3000 Storage you get a breed of efficient, secure and highly available file storage gateways to easily address the file and application storage for SANs. It saves you time and money by simply supporting hundreds to thousands of concurrent users and multiple diverse workloads. It also has non-intrusive data de-duplication that provides an average 50-60% in space savings. It provides security through features such as, built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight. StoreEasy is highly available with turnkey clustered configurations, transparent failover, and online maintenance to deliver continuous availability of data to users, servers, and applications. It is a very robust storage platform for demanding 24 x 7 environments.

Product Description HP StoreEasy 3830 Gateway Storage - NAS server - 0 GB
Device Type NAS server
Host Connectivity Gigabit Ethernet
Enclosure Type Rack-mountable - 2U
Total Storage Capacity 0 GB
Installed Devices / Modules Qty 0 (installed) / 6 (max)
Dimensions (WxDxH) 44.55 cm x 69.85 cm x 8.73 cm
Weight 18.59 kg
Processor 1 x Intel Xeon E5-2609 2.4 GHz ( Quad-Core )
Storage Controller 1 x RAID - PCI Express 3.0 x8 - SATA 3Gb/s / SAS 6Gb/s - RAID 0, 1, 5, 10, 50
Networking Network adapter - plug-in card - Ethernet, Fast Ethernet, Gigabit Ethernet
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Yes
Storage Operating System Microsoft Windows Storage Server 2012 Standard


Expansion / Connectivity
Expansion Bays 6 (total) / 6 (free) x hot-swap - 2.5" SFF
Expansion Slots 24 (total) / 20 (free) ¦ 1 (total) / 1 (free) x PCI Express 3.0 x16 ( full-length, full-height ) ¦ 1 (total) / 0 (free) x PCI Express 3.0 x8 ( half-length, full-height ) ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCI Express 2.0 x4 ( half-length, full-height )
Interfaces 4 x Ethernet 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 6 x USB - Type A ¦ 2 x VGA - HD-15 ¦ 1 x serial

Hard Drive
Type HDD - hot-swap

Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts and labour - 3 years - on-site

Miscellaneous
Compliant Standards FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438

Networking
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network Services Compatibility DNS, DHCP, DFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Microsoft Volume Shadow Copy Services (VSS)
Remote Management Protocol SNMP, IPMI 2.0, SMASH CLP
Type Network adapter - plug-in card

Power
Power Device 2 ( 2 ) x internal power supply - hot-plug
Power Provided 460 Watt
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V ( 50/60 Hz )

Processor / Memory
Max Supported Qty 2
Number of Cores Quad-Core
Processors Installed 1 x Intel Xeon E5-2609 2.4 GHz
RAM Installed 16 GB - DDR3

Software / System Requirements
Storage Operating System Microsoft Windows Storage Server 2012 Standard

Storage Controller
Bus Type PCI Express 3.0 x8
Cache / Buffer Size ( Max ) 1 GB
Data Transfer Rate 600 MBps
Interface Type SATA 3Gb/s / SAS 6Gb/s
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Type 1 x RAID - internal

Video
Video Output Graphics adapter

Tehnične podrobnosti
