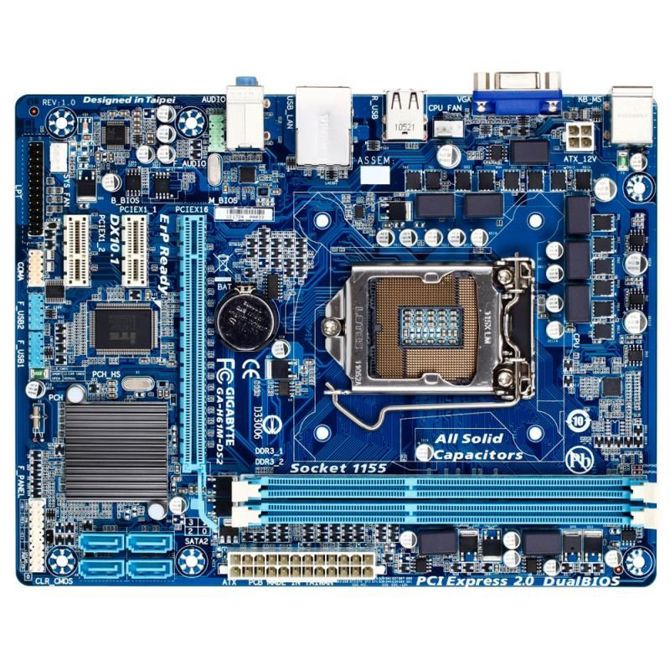

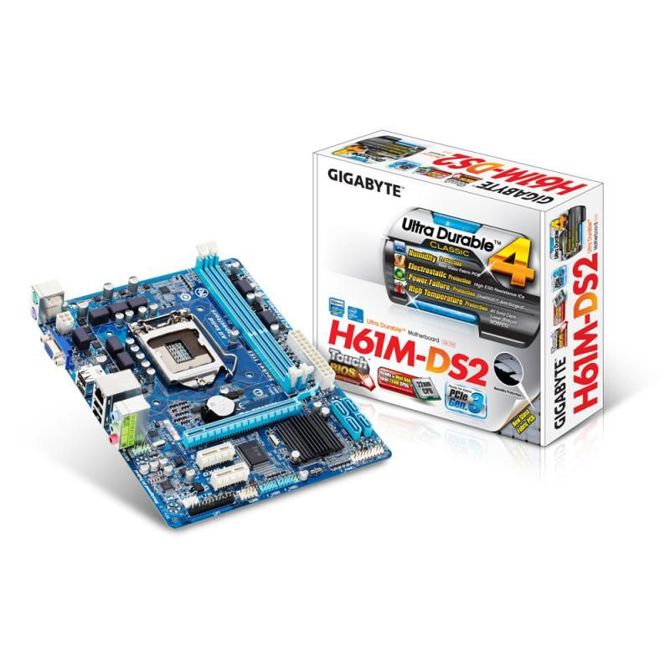

GIGABYTE GA-H61M-DS2, DDR3, SATA2, VGA, LGA1155 mATX - GA-H61M-DS2

PODNOŽJE: Intel LGA 1155
ZA PROCESORJE: Intel® Core i7/i5/i3 / Intel Pentium processors / Intel Celeron
FORMAT: Micro ATX Form Factor 24.4cm x 19.5cm
VEZNI ČIP: Intel H61 Express
POMNILNIK:
2 x 1.5V DDR3 DIMM (1333/1066/800MHz) do skupno 16GB kapacitete, dual channel podpora
GRAFIKA: DA / integrirana v chipset
RAID: NE
RAZŠIRITVENE REŽE:
1 x PCI Express x16
2 x PCI Express x1
MREŽNA KARTICA: Atheros GbE LAN chip (10/100/1000Mbit)
ZVOČNA KARTICA: Realtek audio codec,High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x clearing CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
DODATNO: AutoGreen technology, Smart 6, DualBIOS^TM 3TB+ HDD Support (Hybrid EFI Technology), On/Off Charge Technology, Touch BIOS^TM

Spletna stran proizvajalca: http://www.gigabyte.us/products/product-page.aspx?pid=3970#ov
