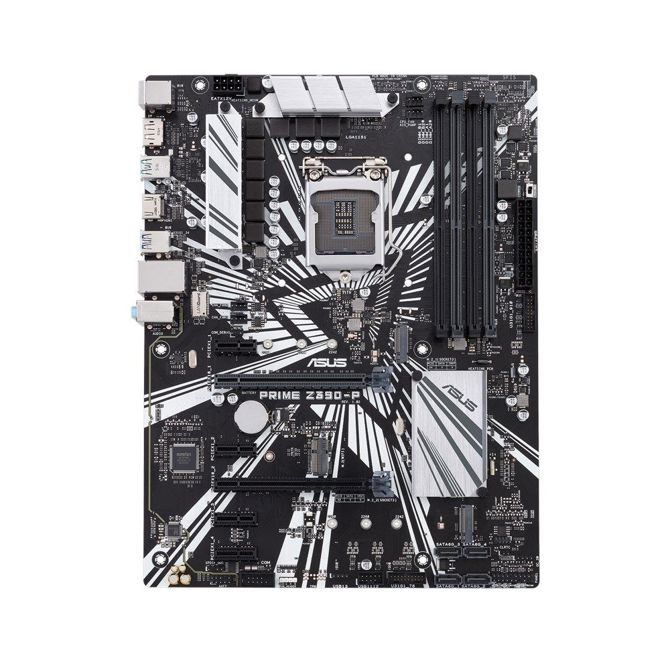

ASUS PRIME Z390-P, DDR4, SATA3, USB3.1Gen2, DP, LGA1151 ATX - PRIME Z390-P

PODNOŽJE: INTEL LGA 1151
ZA PROCESORJE: Intel 9th / 8h Gen Intel® Core™, Pentium® Gold in Celeron®
FORMAT: ATX Form Factor 30.5 x 23.4 cm
VEZNI ČIP: Intel Z390
POMNILNIK:
4 x DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 do skupno 64GB kapacitete, dual channel podpora
GRAFIKA: DA / Intel® UHD Graphics
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (x4 mode)
4 x PCIe 3.0/2.0 x1
1 x M.2 Socket
MREŽNA KARTICA: Realtek® RTL8111H, support LANGuard
ZVOČNA KARTICA: Realtek® ALC887 8-Channel High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x Lighting Control RGB Strip Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 1 with E key
1 x M.2 Socket 3 with M key
1 x M.2 Socket 3 with M Key
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s)
1 x MemOK! II switch(es)
1 x Clear CMOS jumper(s)
1 x System panel connector
ZUNANJI PRIKLJUČKI:1
1 x PS/2 keyboard
1 x PS/2 mouse
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A,
4 x USB 3.1 Gen 1 Type-A,
3 x 8-channel Audio I/O

DODATNO:
Fan Xpert4
- Advanced fan and liquid controls for ultimate cooling and quietness
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 9 Phase digital power design
ASUS Optimem II：
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
MemOK! II
- Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
Q-Installer
- Auto download driver and software. Friendly for first PC builder.

https://www.asus.com/us/Motherboards/PRIME-Z390-P/overview/
