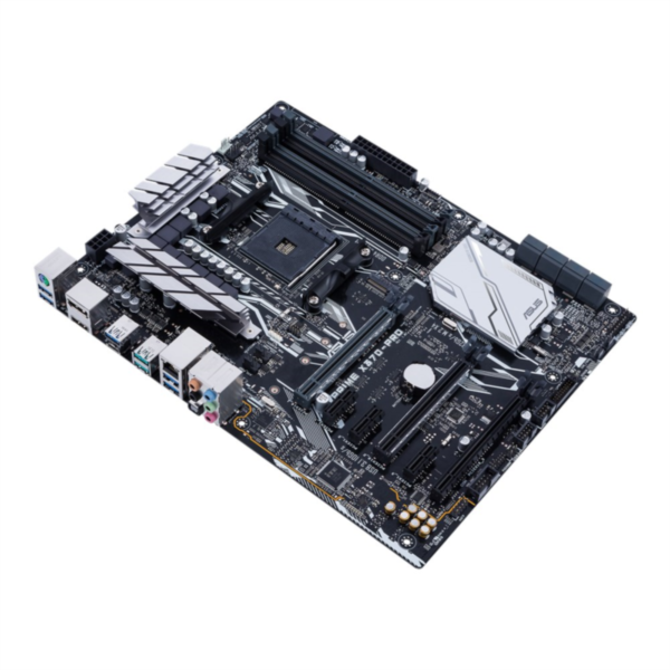

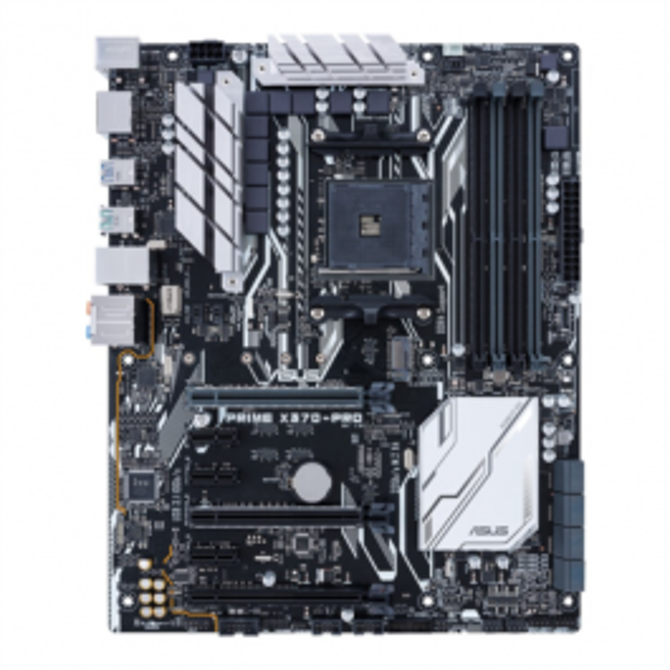

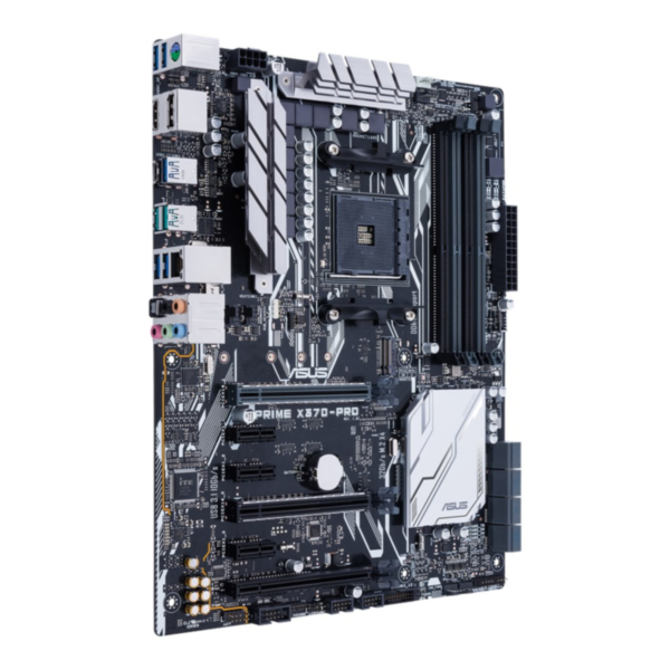

ASUS PRIME X370-PRO, DDR4, SATA3, USB3.1Gen1, AM4 ATX - PRIME X370-PRO

PODNOŽJE: AMD AM4
ZA PROCESORJE: AMD RYZEN / ATHLON
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD X370
POMNILNIK:
4 x DDR4 DIMM (3200(O.C.)/2933(O.C.)/2667/2400/2133MHz) do skupno 64GB kapacitete, dual channel podpora
GRAFIKA: preko APU, če le-ta podpira
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
AMD Ryzen™ Processors
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X370 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
AMD X370 chipset
3 x PCIe 2.0 x1 MREŽNA KARTICA: INTEL LAN chip (10/100/1000Mbit)
ZVOČNA KARTICA: Realtek ALCS1220A codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x Aura RGB Strip Header
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x USB 3.1 front panel connector
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)Type-A
1 x USB 3.1 Type-C
5 x USB 3.0
1 x Optical S/PDIF out
5 x Audio jack(s)
DODATNO:
5-Way Optimization by Dual Intelligent Processors 5
ASUS 5X Protection III :
- ASUS SafeSlot Core
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS Stainless-Steel Back I/O
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards - Enhanced ESD protection
ASUS TPU :
- Auto Tuning
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Turbo App

Spletna stran proizvajalca: https://www.asus.com/Motherboards/PRIME-X370-PRO/overview/
